Detergent sheet making line
This is a line special for detergent making, it contain several machine and make from liquid detegert to sheets, details as below:

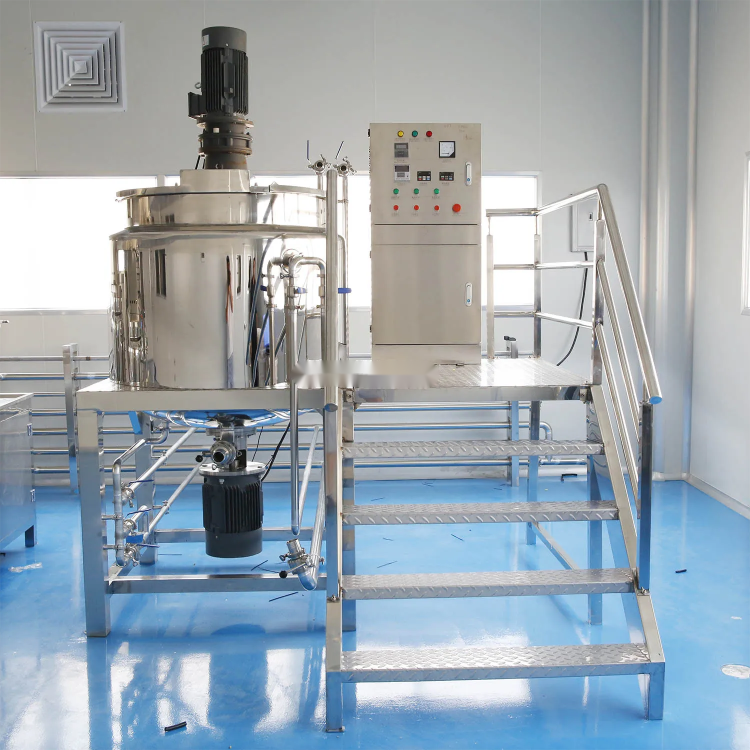

1. Steam heating mixing tank with homogenizer
Capability & Characteristic
High speed disperser, strong mixing scattered viscous, solid liquid materials production can quickly dissolve in the liquid AES, AESA, LSA of refractory materials, save the energy consumption and shorten the production cycle.
Stepless speed change device, is used in the main mixing in low temperature, high viscous when reducing bubble formation.
Use
PMC mixing tank with homogenizer is mainly used in liquid detergent, such as detergent, shampoo, shower gel, etc.) the configuration of the product, the reaction machine mixing, dispersing, heating and cooling and other functions into an organic whole, is the ideal equipment manufacturer to make liquid.

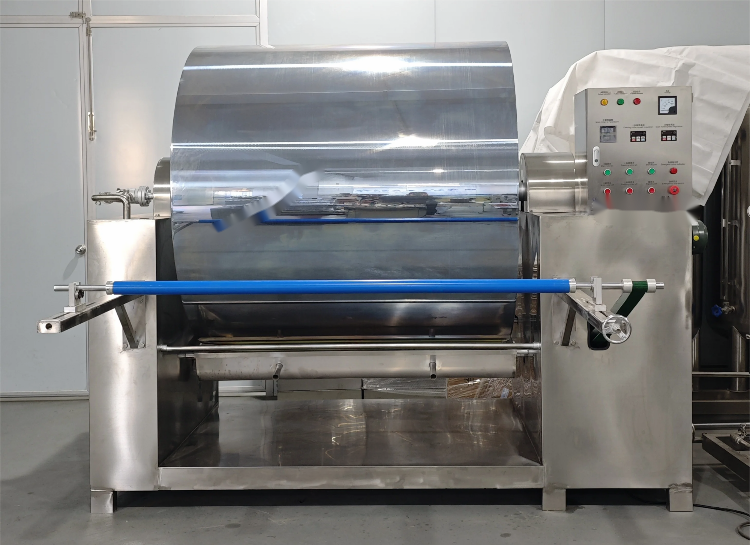

2. laundry sheet steam heating drum dryers
Its drum dryer working principle is to make liquids or muddy object item in steam or other hot heating surface to form films. drum turn around was in the process of drying is completed. use spatula scrape. revealing the surface again with the raw material contact drying form a thin film.
The dryer drum composed by a rollers, racks, the charging device (top feeding or bottom prepregs), drive, Hopper, charge transfer device and so on.
①With steam or thermal oil as the heat source. larger heating area. efficiency. uniform heating
② Drying rate fast. wall of wet material membrane on heat and mass transfer process from the inside outward in the same direction. temperature gradient greater. keeps the material membrane surface high evaporation intensity
③The drying time is short. about 7~30s. suitable for heat-sensitive materials
④Operation is simple. easy maintenance

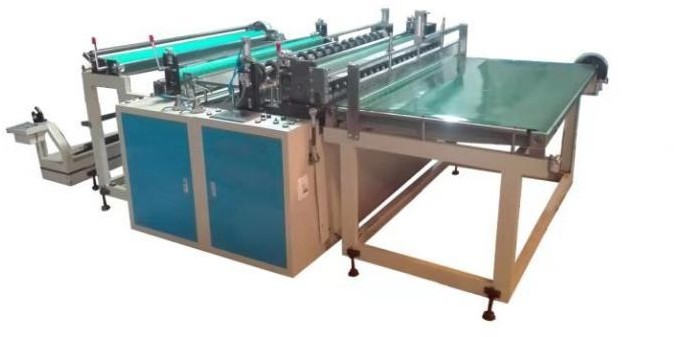

3. Sheets slicer
This machine adopts servo system PLC touch screen control (human-machine interface), frequency conversion speed regulation, automatic feeding, automatic tension. Easy to operate; use three-phase motor to run the slicing speed more stable and faster; use pneumatic spring round blades for slitting,
cutting edges are beautiful and durable; adopting a 3-level feeding device, the slicing is more accurate, and the special anti-slip knife function is installed, which is safer to use. Tailor-made for slicing laundry tablets, fast speed, reducing a lot of labor costs, is an ideal equipment for slicing laundry tablets
4. Accessory machine list
Steam generator
RO Pure Water Equipment
Lift disperser
